Solar Panel Mounting Glue Junction Box

AE-LESS (AFRICAN ENERGY LOGISTIC SUPPORT SERVICES) (School Road, Umuahia)

₦5000

Current Stock:

Quantity:

- +

Add to Cart

Solar Panel Mounting Glue Junction Box has been added to cart.

Continue shopping Continue From Shop View Cart and Checkout

Description

Product Description

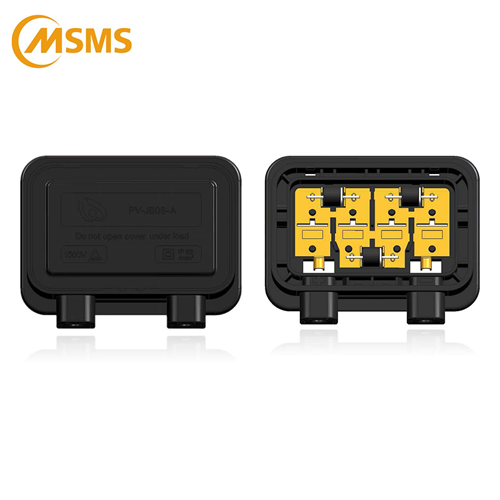

- PV-JB08-A junction box is beautiful and small in structure design, easy to install, and can be used for automatic production line assembly. The whole copper conductor has better heat dissipation, and the overall glue filling design has excellent waterproof, dustproof, safe and reliable performance. - The protection grade reaches IP68. The overall and matching connector has excellent performance, low heat and power consumption.
- The connection of bus bar and cable is welded and crimped respectively The electrical performance is safe and reliable.

Technical Data

Item No.

 PV -JB08-A

Rated current

15A

Working voltage

100V

Rated voltage

DC 1500V

Operating temperature

-40~+85℃

Degree of protection

 IP67

Flame class

 UL94-V0

 Pollution degree

 class A

 Connecting capacity

 1x4mm2 12AWG

 Waterproof structure

 glue pouring

 Connection method

 welding

Material and specification

Number

parts name

type

QTY

 ①

 Lid

 PPE+PS 9406P(f1)

1

 ②

 Diode

 30PV045

3

  ③

 Support

 H62, copper

1

 ④

 Box

 PPE+PS 9406P(f1)

1

 ⑤

 Floor

 PA66, FR7025V0F(+)

1

 ⑥

 Pressing block

 PPE+PS 9406P(f1)

2

 ⑦

 Cable

 1x4,0mm2; 1500VDC

2

 ⑧

 Connector

 PV-TT02

1

 Number of diodes

 Diod model

 Rated current

 Rated voltage

 Number

 30PV045

 30A

 45V

 3

Installation Steps
Box adhesive back plate

It's a very simple affixing operation between junction box and back sheet of PVmodule.
Making junction box facing down and injecting glue around the bottom of the junction box, Solder ribbons of PV module passed through sealing area.
The box body is aligned in the right place of the back sheet.
Bus welding
 Do not move the slotted
screwdriver, contacting the ribbon of PV-module with soldering iron tip,
remove the soldering iron until the tin layer melted, and remove the forceps
after tin curing.
Box filling
After the connection and assembly of the junction box and components, the inside part of the junction box must be injected with glue. The copper, diode and metal components inside of the junction box must be sealed with glue.
Install box lid
The box lids are placed above the junction box.
Press box lid down, The box lid in the right place when you hear "flap" sound obviously.
Notes
1、 Keeping the box body a horizontal state when cover the lid.
2、Do not tilt the junction box when complete.
3、Required when installing the lid place panels across in the air currents 10 hours till the silicon cures.
