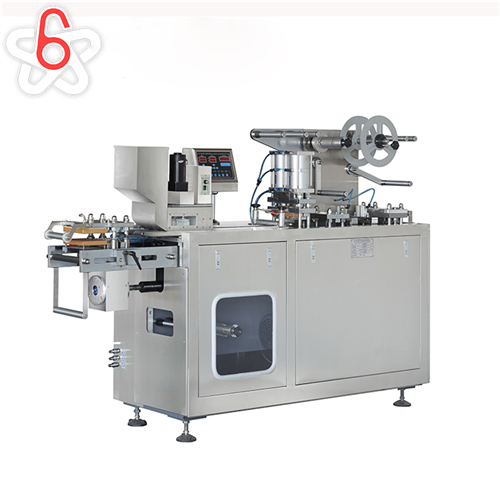

Pharmaceutical Differentiation Pill Capsule Blister Package Machine Model Number: DPP-300
AE-LESS (AFRICAN ENERGY LOGISTIC SUPPORT SERVICES) (School Road, Umuahia)
Features:
1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noise of other gear wheel transmission can be avoided.
2.Imported controlling system is adopted;also it can be equipped with detecting and rejection function device(Omron Sensor) for number of medicines according to the user's requirement. It adopts imported frequency inverter.
3.It adopts photoelectrical controlling system to make PVC,PTP,Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over-length distance and multi stations.
4.It can be optional equipped with photocell correction device,imported stepper motor traction and image-character register to optimize packing grade.
5.The machine is suitable for industries of foodstuff,medicine,medical instruments,hardware,electronics and etc for packing.
Technical Specifications:
| Punches frequency | 10-35times/min |
| Production capacity | 1200-4200plates/hour(two plates one time) |
| Max.forming area and depth | 130x100(standard thickness≤15mm) Max.depth 26mm |
| Stroke range | 50-120mm |
| Standard plate size | 80x57mm |
| Clean compressed air | 0.4-0.6Mpa |
| Air compressed capacity | ≥0.3m3/min |
| Total power supply | 380V 50HZ 3.8KW |
| Main Power | 1.5KW |
| PVC hard film | (0.15-0.5)x150mm |
| PTP Aluminum film | (0.02-0.035)x150mm |
| Dialysis paper | (0.02-0.035)x150mm |
| Mould cooling | Tap water or recycling water |
| Overall dimension | 2135x635x1405mm(L*W*H) |
| Net Weight | 820KG |
| Gross Weight | 890KG |
| Noise | <75dB |
