Oppo A54

Product Details

Technical Specifications

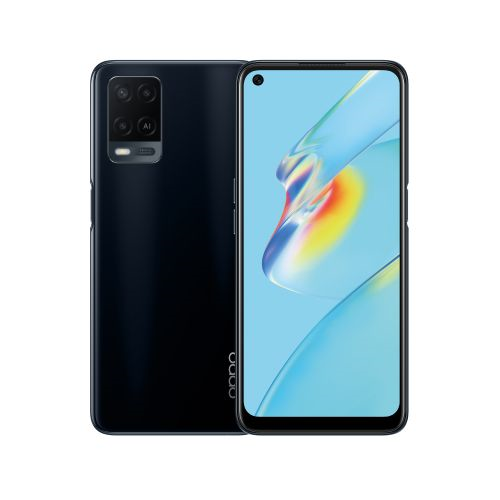

OPPO A54

(CPH2239)

5000mAh Battery, 18W Fast Charge

128GB ROM, Octa-Core Processor

16.55cm (6.51'' ) Punch-Hole Screen, Eye Care

3D Curved Body, Side Fingerprint Unlock

16MP Selfie Camera, Al Beautification

IPX4 Splash Waterproof, Quality Control

Crystal Black - Starry Blue

* Product pictures are for reference only. Please refer to the actual product.

Size and Weight

Height: about 163.6mm

Width: about 75.7mm

Thickness: about 8.4mm

Weight: about 192g

* Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Memory

4GB RAM + 64GB ROM

4GB RAM + 128GB ROM

RAM Type: LPDDR4X @ 1600 MHz 2 x 16 bits

ROM Type: eMMC5.1

External Memory: Supported

USB Version: USB 2.0

USB OTG: Supported

* The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.

Display

Size: 6.51'' (16.55cm)

Screen Ratio: 89.2%

Resolution: 1600 x 720 (HD+)

Refresh Rate: 60 Hz

Touch Sampling Rate: 120Hz

Colour Gamut: TYP 70%

Pixel Density: 269 PPI

Contrast Ratio: 1500:1

Brightness: 480 nits (Typ.), 550 nits (Typ. under sunlight)

Panel: LCD (A-Si)

Camera

Rear

13MP Main camera: f/2.2; FOV 81.3°; 5P lens; AF supported

2MP Macro camera: f/2.4; FOV 88.8°; 3P lens

2MP Boken camera: f/2.4; FOV 88.8°; 3P lens

Front

16MP; f/2.0; FOV 79.3°; 5P lens

Rear:

Maximum size: 4160 x 3120 (Photo mode)

Photo sizes in different aspect ratios:

3120 x 4160 (4:3)

3120 x 3120 (1:1)

1872 x 4160 (full screen)

2340 x 4160 (16:9)

Front:

Photo sizes in different aspect ratios:

4624 x 3468 (4:3)

3472 x 3472 (1:1)

4624 x 2600 (full screen)

4624 x 2600 (16:9)

Video

Rear

Rear Camera: 1080P@30fps and 720P@30fps (1080p@30fps by default)

Slow-motion: 720P@90fps

Video zoom: 1080P@30fps, 720P@30fps

Front

Front camera: 1080P/720P@30fps (Default: 1080P@30fps; beautification turned on)

Video zoom or slow motion is not supported by the front camera.

Chips

CPU: MT6765V/CBA

CPU Speed: Up to 2.3GHz

CPU Cores: Octa-core

GPU: IMG GE8320 @ 680 MHz

Battery

4890/5000mAh (Rat/Typ)

Fast Charge

9V/2A (MAX)

Biometrics

Support Fingerprint Unlock and Face Unlock

Sensors

Geomagnetic sensor

Light sensor

Proximity sensor

Accelerometer

Gravity sensor

Cellular Network

SIM 2: Supported

Nano-SIM card

* Functions available on the live network depend on the situations of carrier's network and related services deployment.

2G: GSM, 850/900/1800/1900 MHz

3G: UMTS (WCDMA) bands 1/5/8

4G: TD-LTE bands 38/40/41 (2496–2690 MHz)

4G: LTE FDD bands 1/3/5/7/8/20/28

Connectivity

WLAN: Support WLAN 2.4G/5.1G/5.8G

Bluetooth Version: Bluetooth 5.0, Bluetooth low Energy

Bluetooth Audio Codec: SBC, AAC, aptX and LDAC

USB Interface: USB Type C

Earphone Jack: 3.5 mm

Operating System

ColorOS 7.2 based on Android 10

Location Technology

GNSS:

Built-in GPS

BeiDou

GLONASS

GALILEO

QZSS positioning systems supported

Built-in A-GPS

A-glonass

 A-Beidou supported

Satellite positioning:

Build-in GPS, A-GPS

BeiDou Navigation Satellite System

GLONASS, and Galileo

Other positioning methods:

Wi-Fi

mobile network

 electronic compass

Maps: Support all third-party map apps

In the box

Phone x1

Earphones x1

USB cable x 1

Charger x1

SIM ejector tool x1

Protective case x1

Quick start guide x 1

Warranty card x 1

Additional Remarks

A special technology is applied to conceal the proximity sensor on the upper front of OPPO's smartphone for the whole look of simplicity. It may cause abnormality of proximity function if the film or protector covers the proximity sensor area. Refer to OPPO's official layout of protector and film for details.

Key Features

ColorOS 7.2 based on Android 10

CPU: MT6765V/CBA

128GB ROM, Octa-Core Processor

16.55cm (6.51'' ) Punch-Hole Screen, Eye Care

3D Curved Body, Side Fingerprint Unlock

16MP Selfie Camera, Al Beautification

IPX4 Splash Waterproof, Quality Control

5000mAh Battery, 18W Fast Charge

Crystal Black -Starry Blue

What’s in the box

Phone x1

Earphones x1

USB cable x 1

Charger x1

SIM ejector tool x1

Protective case x1

Quick start guide x 1

Warranty card x 1

Specifications

SKU: OP896MP07ON8PNAFAMZ

Color: Crystal Black

Model: A54(4+128)

Weight (kg): 2
