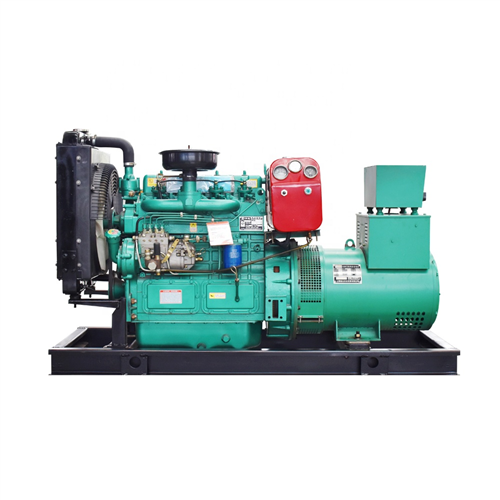

37.5Kva 30Kw durable high power diesel generator
AE-LESS (AFRICAN ENERGY LOGISTIC SUPPORT SERVICES) (School Road, Umuahia)
₦1100000
| DIESEL GENERATOR SET SPECIFICATIONS | ||
|
Ricardo Diesel engine |
Diesel engine brand | BEST POWER |
| Model | ZH4100D | |
| Standby power | 33KW | |
| Rated power | 1500r/min | |
| Type | Inline ,four strokes | |
| Intake method | Turbocharged, air-cooled | |
| Stroke number | 4 | |
| Cylinder number | 4 | |
| Bore*stoke | 100*115mm | |
| Total displacement of piston | 3.6L | |
| Speed mode | Electronic speed regulation | |
| Fuel type | Diesel type | |
| Starting way | DC24V electric starting | |
| Cooling way | Closed circulation forced water cooling (fan is directly driven by the engine) | |
| Minimum fuel consumption rate | 248g/kw.h | |
| Lub Oil consumption rate | 0.3g/kw.h | |
| Crankshaft rotation direction | Counterclockwise (facing the flywheel end) | |
| Lub oil capacity | 13L | |
| Alternator | Rated power | 30KW |
| Rated current | 54A | |
| Rated voltage | 400V/230V | |
| Rated frequency | 50HZ | |
| Rated speed | 1500r/min | |
| Rated power factor | 0.8(Lag) | |
| Generator efficiency | 91.62% | |
Waveform |
Positive wave | |
| Phase and connection | Three-phase four-wire, star hair extension | |
| Excitation method | Brush | |
| Pressure regulation method | Automatic | |
| Protection class | IP21 | |
| Main technical specifications of diesel generator set | Genset type | Closed silent type |
| Generator set model | 30GF | |
| Rated power factor: COSΦ = 0.8 (lag) | Steady-state voltage adjustment rate (%): ≤ ± 1 | |
| Rated output voltage:400V/230V | Voltage fluctuation rate (%): ≤ ± 0.5 | |
| Rated current:54A | Transient voltage adjustment rate (%): + 20 ~ -15 | |
| Rated frequency:50Hz | Voltage stabilization time (s): ≤1 | |
| Rated speed :1500rpm | Steady-state frequency adjustment rate (%): ≤ ± 1 | |
| Start control mode: manual | Frequency fluctuation rate (%): ≤ ± 0.5 | |
| Overload protection: water temperature, oil pressure, overcurrent, overload | Transient frequency adjustment rate (%): + 10 ~ -7 | |
| Battery:100AH*2 | Frequency stabilization time (S): ≤3 | |
| Silent type Generator set size: | L:2200mm,W:1000mm,H:1600mm | |
| Whole Weight: | 800KG | |
